Paver Block Production Line 2026: How To Make Colored Interlocking Paving Bricks
Paver Block Production Line 2026: How To Make Colored Interlocking Paving Bricks
September 16, 2026
Introduction
In 2026, colored interlocking paving bricks have become the most in-demand construction materials for urban roads, residential communities, garden landscapes, parking lots, and rural road renovation projects. Compared with ordinary hollow blocks, colored paver bricks have higher market prices, better profit margins, and wider engineering application scenarios, making them the core profit product for most block factories.
However, many block plant owners face common production problems: uneven brick color, easy color fading after paving, weak interlocking structure, surface peeling, low compression resistance, and unqualified finished products failing engineering inspections. Most of these issues are not caused by poor machine quality, but by incorrect production processes, unreasonable color mixing ratios, and improper two-layer molding techniques.
This professional 2026 paver block production guide systematically explains the complete production workflow of colored interlocking paving bricks, standard color matching formulas, core equipment configuration requirements, quality control standards, and common defect solutions. It is suitable for new investors preparing to build a paver block production line and existing block factories upgrading to high-value colored brick production, helping you produce stable, high-standard, fade-resistant interlocking pavers and seize high-profit engineering orders.
1. What Are Colored Interlocking Paving Bricks? (2026 Market Advantages)
Colored interlocking paving bricks are special concrete paving materials with irregular interlocking grooves on the edges and colored decorative surfaces. Different from ordinary flat paving bricks, the interlocking structure makes the bricks tightly connected after pavement, effectively preventing road surface displacement, cracking and settlement. The colored surface layer replaces traditional post-painting construction, with integrated molding, wear resistance and anti-fading performance.
Core Market Advantages in 2026
High Profit Margin: The unit price of finished colored pavers is 2–3 times higher than ordinary hollow blocks, with lower raw material waste rate and higher added value.
Wide Application Scenarios: Cover municipal landscape roads, community parking lots, villa gardens, scenic sidewalks, rural road hardening and other projects, with stable market demand.
Strong Environmental Compliance: No secondary painting pollution, integrated one-time molding, fully meeting global urban green construction standards.
Durable & Low Maintenance: Wear-resistant and anti-pressure, long service life, no frequent maintenance after pavement, favored by engineering contractors.

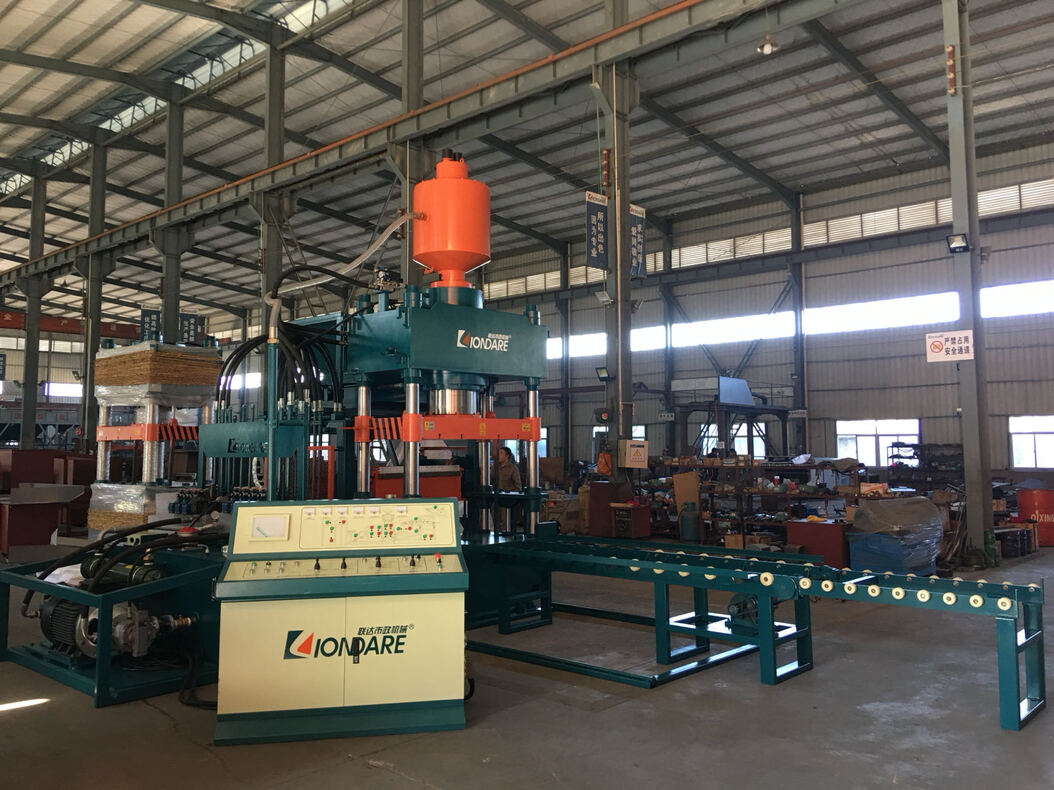

2. Core Equipment Configuration of Standard Paver Block Production Line
Producing qualified colored interlocking pavers cannot rely on ordinary single-layer block machines. Professional paver production lines support two-layer synchronous molding (colored surface layer + concrete base layer), which is the key to ensure bright color, no peeling and high hardness of finished bricks.
2.1 Full Set Standard Production Equipment

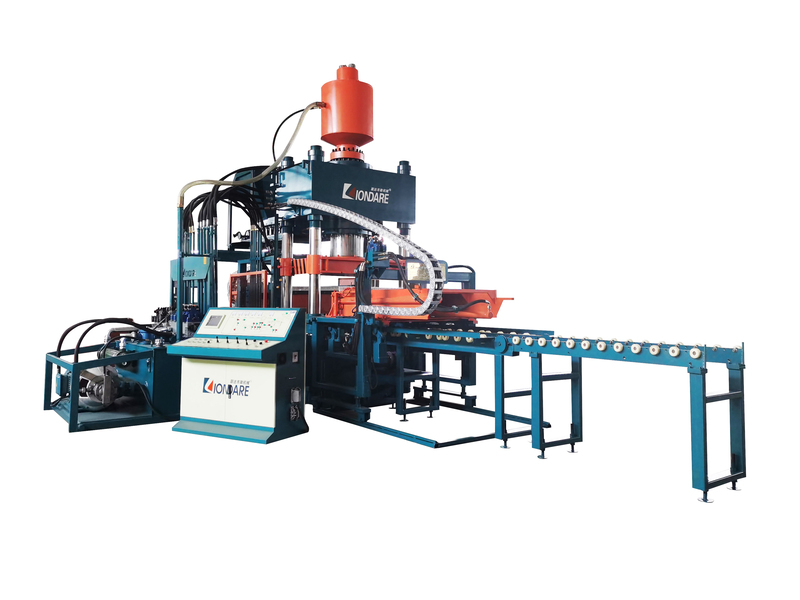

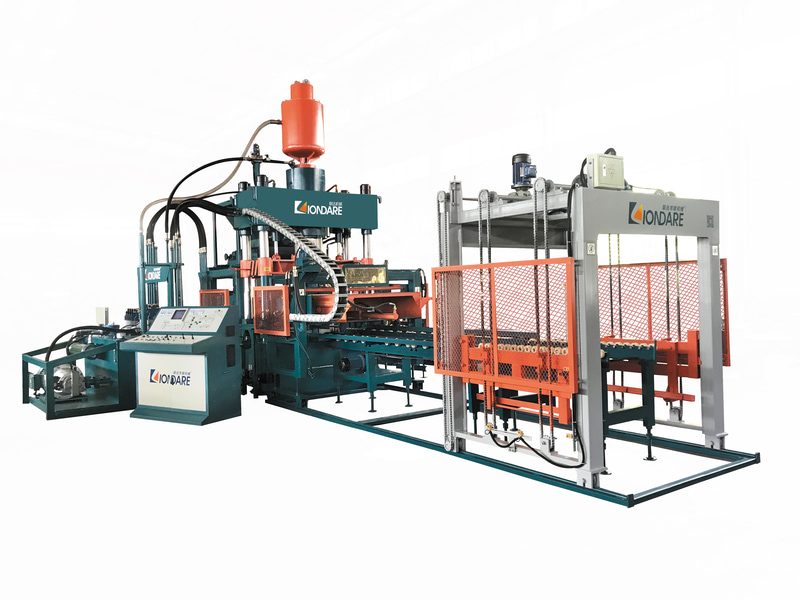

Paver Special Block Machine: Equipped with independent double feeding bins and double vibrating systems, realizing separate feeding of color surface material and base material, one-time integrated molding. The high-frequency vibration system ensures dense brick body and smooth surface.
Special Color Mixing Mixer: Professional small mixer for color pigment and fine sand mixing to ensure uniform color without color difference.
Automatic Batching System: Precisely control the proportion of cement, sand, aggregate and color pigment to avoid batch color difference.
Interlocking Paver Molds: Customized herringbone, I-shaped, hexagonal, and wave-shaped interlocking molds to meet different landscape pavement design requirements.
Complete Curing & Stacking Auxiliary Equipment: Pallet conveyor system and finished brick stacking equipment to support continuous mass production.
2.2 Key Machine Selection Standards 2026
The core of paver machine selection is double-layer synchronous molding and high-frequency uniform vibration. Ordinary single-layer machines can only spray color on the surface manually, which leads to easy peeling, fading and unqualified flatness, and cannot meet engineering acceptance standards.
3. Step-by-Step Production Process for Qualified Colored Interlocking Pavers
Step 1: Raw Material Preparation & Proportioning
Colored paver bricks are divided into two structural layers, with completely different material ratios:
Color Surface Layer (3–5mm): High-quality white cement, fine sand, inorganic iron oxide pigment, water. Inorganic pigments are used to ensure anti-ultraviolet, anti-fading performance, avoiding color fading caused by long-term sun exposure.
Concrete Base Layer: Ordinary cement, medium coarse sand, stone aggregate, recycled aggregate (optional). Ensure high compression resistance and structural stability of the brick body.
Note: Strictly prohibit organic pigments with poor weather resistance; all raw materials need precise batching, and visual estimation is forbidden to avoid color difference between batches.
Step 2: Separate Mixing of Surface and Base Materials
The color surface material needs to be stirred evenly by a special small mixer to ensure uniform pigment diffusion without color spots. The base concrete material is stirred by the main mixer to ensure dense and uniform texture. The two materials are stored in independent feeding bins to avoid mixing.
The equipment first feeds the colored surface material into the mold for preliminary leveling, then fills the base concrete material. Through high-frequency vibration and hydraulic pressure compression, the two layers are tightly combined into one body without gaps. This process effectively solves the problem of surface peeling and delamination of colored bricks.
Step 4: Automatic Demolding & Initial Setting
After molding, the finished bricks are demolded automatically and placed on flat pallets. Fresh paver bricks must be placed statically for 24 hours for initial setting; premature movement will cause corner damage and surface deformation, increasing the defective rate.
Step 5: Standard Curing Process (Key to Anti-Fading & Hardness)
Curing directly determines the compression resistance, wear resistance and color stability of paver bricks. After initial setting, the bricks enter the curing area for watering maintenance. The standard curing cycle is 7–14 days. Sufficient curing can significantly improve brick hardness and avoid later cracking and color fading.
Step 6: Finished Product Inspection & Packaging
Check the brick surface flatness, color uniformity, interlocking groove completeness and compression resistance. After passing the test, stack and package for delivery.
4. Common Paver Brick Defects & Professional Solutions
4.1 Uneven Color & Color Spots
Cause: Uneven pigment stirring, inaccurate batching ratio, or unstable feeding speed. Solution: Use special color mixer, adopt automatic batching system, and fix the mixing time of each batch of materials.
4.2 Surface Color Fading After Pavement
Cause: Low-quality organic pigments, insufficient cement ratio of surface layer, or insufficient curing time. Solution: Replace with inorganic weather-resistant pigments, optimize surface layer formula, and strictly implement 7-day+ standard curing.
4.3 Surface Peeling & Delamination
Cause: Asynchronous feeding of two layers, insufficient vibration compression, or gap between surface material and base material. Solution: Adjust double-layer feeding parameters, increase high-frequency vibration time, and ensure tight bonding of the two layers.
4.4 Low Brick Hardness & Easy Cracking
Cause: Unqualified aggregate gradation, insufficient cement content, or insufficient curing humidity. Solution: Optimize raw material ratio, increase cement content appropriately, and keep continuous humid curing.
4.5 Unqualified Interlocking Groove
Cause: Mold deformation or insufficient compression pressure. Solution: Regularly check and maintain molds, calibrate hydraulic pressure parameters, and replace worn molds in time.
Diversified Product Production: Replace different interlocking molds to produce herringbone, hexagonal, permeable and colored pavers to meet different engineering orders and expand profit channels.
Raw Material Cost Saving: Reasonably mix recycled aggregate into the base layer material without affecting hardness, reducing raw material costs and meeting environmental protection standards.
Strict Batch Management: Fixed proportion, fixed mixing time and fixed vibration parameters for each batch of production to ensure stable product quality and win long-term engineering cooperation orders.
Reduce Manual Intervention: Adopt automatic batching and feeding systems to reduce human error, lower defective rate and save labor costs.
Final Conclusion
In 2026, colored interlocking paver bricks are still the most profitable high-value product in the block manufacturing industry. Stable product quality, uniform color and qualified interlocking structure are the core competitiveness for factories to obtain municipal and landscape engineering orders.
Successful paver block production relies on professional double-layer paver production line equipment, standardized two-layer material ratio, scientific vibration molding process and complete curing management. Ordinary single-layer machines and non-standard production processes will only lead to high defective rates and lost orders.
We provide customized full-set paver block production line solutions, including equipment selection, mold customization, formula guidance and production process training. Whether you are building a new paver plant or upgrading an old production line, we can provide one-stop professional technical support.
Contact our technical team to get the latest 2026 colored paver brick formula and factory direct quotation.
FAQ
Q1: What machine is needed to produce qualified colored interlocking paver blocks?
A: Professional double-layer synchronous molding paver block production line is required. It is equipped with independent double feeding bins and high-frequency vibration system, which can realize integrated molding of colored surface layer and concrete base layer. Ordinary single-layer block machines cannot produce qualified pavers, as they are prone to peeling, fading and delamination, failing engineering acceptance.
Q2: Why do colored paver blocks fade after outdoor use?
A: The main reasons are the use of low-quality organic pigments, insufficient cement content in the surface layer, uneven material mixing, and incomplete curing. To avoid fading, manufacturers must use weather-resistant inorganic iron oxide pigments, strictly control the surface layer formula, and complete 7–14 days of standard humid curing.
Q3: What is the standard production process for interlocking paver bricks?
A: The standard process includes raw material precise batching, separate mixing of color surface material and base material, double-layer synchronous feeding and high-frequency vibration molding, automatic demolding, 24-hour initial static setting, 7–14 days humid curing, and finished product quality inspection and stacking.
Q4: Can old ordinary block machines be upgraded to produce colored paver blocks?
A: Partial upgrade is feasible for qualified old machines. It needs to add independent color mixing equipment, double feeding devices and paver special molds, and upgrade the vibration system. However, severely aging single-layer machines with unstable pressure cannot be upgraded, and it is recommended to replace with a professional paver production line.
Q5: How long is the curing period for colored paver blocks to reach full hardness?
A: Paver bricks need at least 7 days of standard humid curing to reach basic usable hardness. To achieve maximum compression resistance, wear resistance and color stability, a 14-day curing cycle is recommended. Insufficient curing will lead to soft brick body, surface cracking and accelerated fading in later use.
